Features
1, Capable of pressing general PC connector and British, American style PC connector. as well as electronic assembling.
2, Minimum loss during operation, Mold are easily changed.

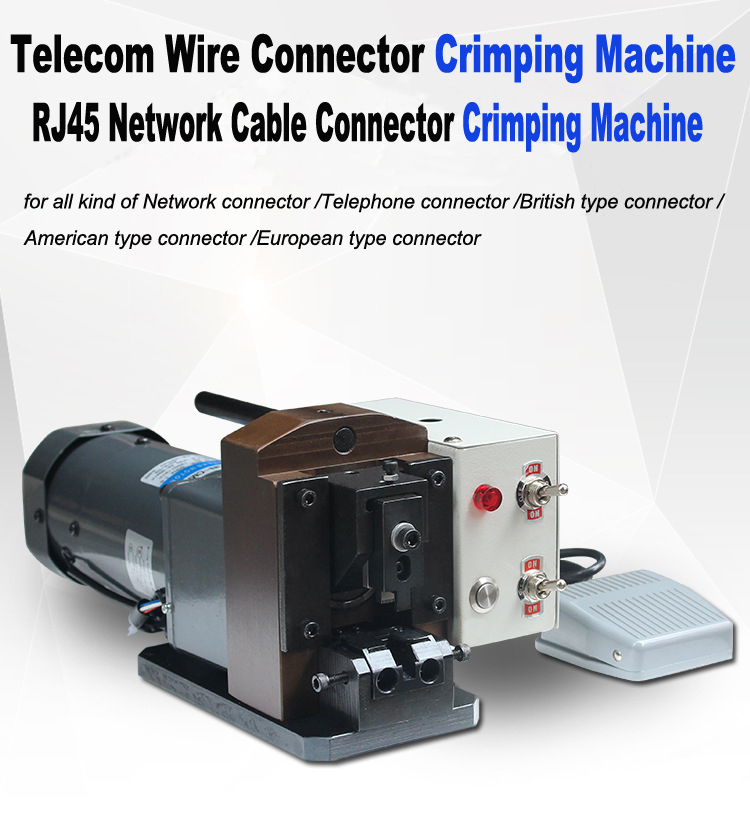

Telecom Wire Connector Crimping Machine RJ45 Network Cable Connector Crimping Machine

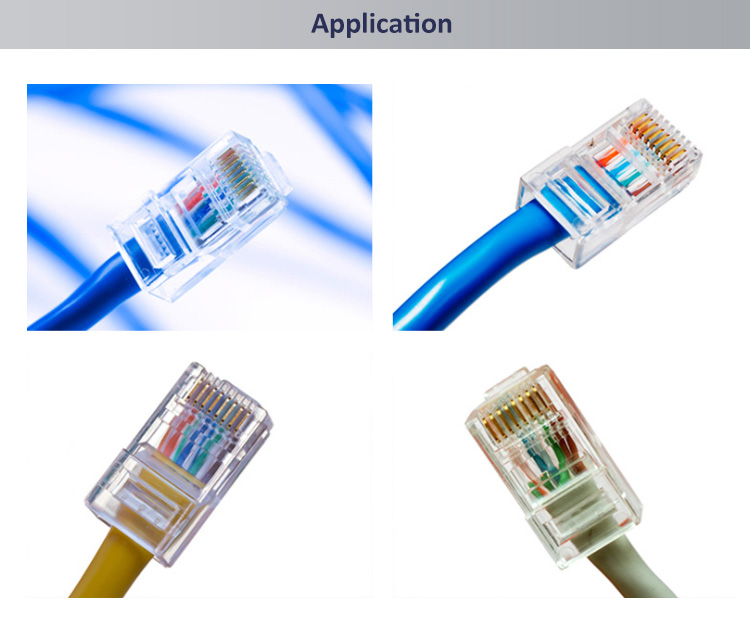

For all kind of Network connector/Telephone connector /British type connector/ American type connector /European type connector
Technical Parameter
| Model | CX-CP |
| Power | 220V / 60HZ |
| Applicable | 2P-8P8C |
| Stroke | 25mm |
| Dimension | 320*180*160 mm |
| Weight | 12KG |
How to use the RJ45 Network Cable Connector Crimping Machine?
Switch/reset switch total 3 gear adjustments
1. Auto-sensing: put into the crystal head will automatic sensing crimping.
2. Sleep position: no buttons can be operated.
3.Foot pedal position: can only be operated with a pedal controller.
Switch adjuster: total 2 gear adjustments
1. Power switch:control the power on.
2.Mold adjustment switch: activates the operation of the mode adjustment control switch.
Indicator light/troubleshooting light
1.If the light is not on means the power is not turned on.and you can turn it on by turning the mode adjustment switch to gear1:If the
light is still not onplease check whether the fuse at the back is blown.
Moud adjusting controller
Control the knife mold up/down

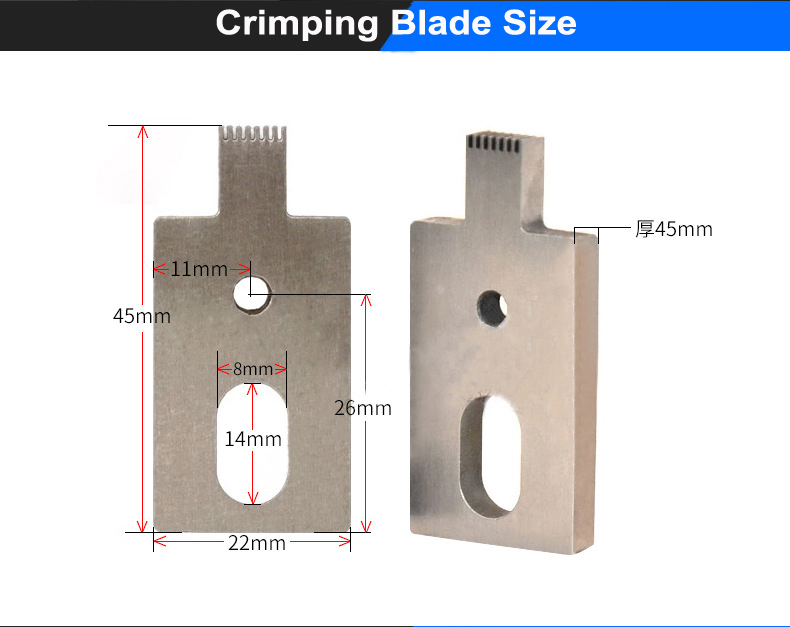

Upper knife mold: adjust the lifting height of knife mold
1. If the pressure is not enough, please loosen the upper knife fixing screw and fine-tune the pressure adjustment nut.
2. If it is not puncturedfine-tune the height of the inner blade.
3. Support a variety of knife molds.
Down mold seat fine-tune left and right positions.
1.Loosen the two screws on the front,then adjust the left and right nuts.
